MIL-DTL-46593B (MR)
TABLE II - Weight
PROJECTILE
WEIGHT in GRAINS
Caliber .22 Type 1
17.0 +/- 0.5
Caliber .22 Type 2
17.0 +/- 0.5
Caliber .30
44.0 +/- 0.5
Caliber .50
207.0 +/- 2.0
20MM
830.0 +/- 4.0
3.4 Dimensions. Dimensions and tolerances shall be as shown in figures 1, 2, 3, 4, 5, and Table
III.
3.5 Finish. The fragment-simulating projectiles shall have a surface as shown in figures 1, 2, 3,
4, and 5.
3.6 Preservation. Fragment-simulating projectiles shall be coated with a rust inhibiting material
as specified in MIL-PRF-32033.

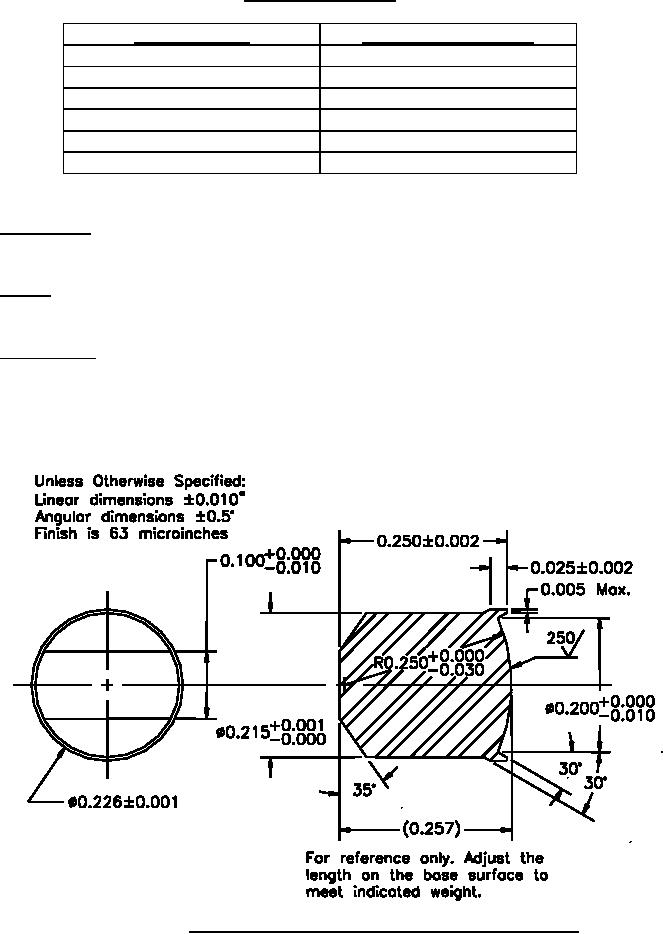

FIGURE 1. Fragment-simulating caliber .22 (Type 1 and Type 2).
