MIL-DTL-46593B (MR)

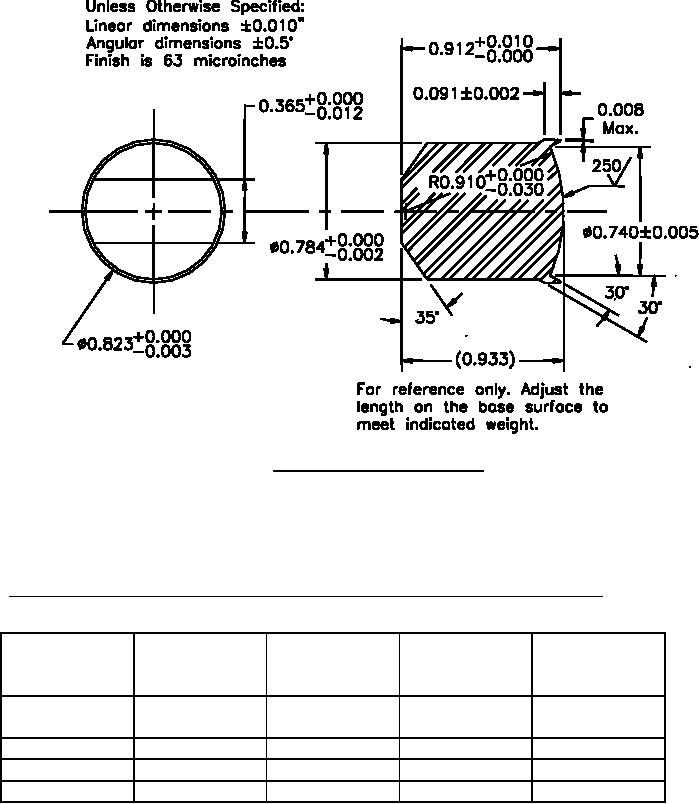

FIGURE 4. Fragment-simulating 20MM.
TABLE III. Dimensions for Fragment Simulating Projectiles for Saboted Launch.
Reference
Diameter
Flat
Mass
FSP Type
Length
(grains)
(inches)
(inches)
(inches)
Caliber .22
0.215 + 0.001
0.100 0.010
0.250
17.0 ± 0.5
(Type 1 and 2)
Caliber .30
0.296 0.001
0.136 0.010
0.340
44.0 ± 0.5
Caliber .50
0.495 ± 0.001
0.224 0.015
0.580
207.0 ± 2.0
20MM
0.784 0.002
0.365 0.012
0.900
830.0 ± 4.0
6
