MIL-DTL-46593B (MR)
35o ± 0.5o
Flat
Reference
Diameter
Length
NOTES:
1. No substitutions for steel.
2. Finish is 63 microinches.
3. Length is for reference only. Adjust length on the base surface to meet indicated
weight.
4. Hardness is Rockwell C scale 30.0 ± 1.0 for all except the.22 caliber Type 2, which
is Rockwell C 27.0 ± 3.0.

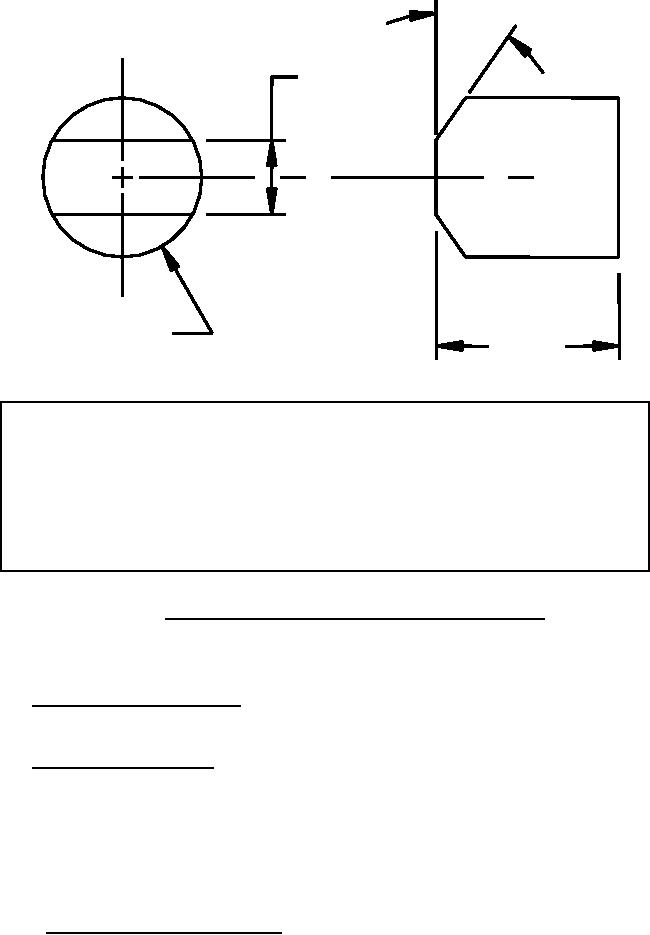

Figure 5. Fragment Simulating Projectiles for Saboted Launch
4. VERIFICATION
4.1 Classification of inspections. The inspection requirements specified herein are classified as
conformance inspection (see 4.2).
4.2 Conformance inspection. The supplier is responsible for the performance of all inspection
requirements as specified herein. Except as otherwise specified (see 6.2), the supplier may
utilize his own or any other inspection facilities and services acceptable to the Government.
Inspection records of the examination and tests shall be kept complete and available to the
Government as specified in the contract or order (see 6.2). The Government reserves the right to
perform any of the inspections set forth in the specification where such inspections are deemed
necessary to assure that supplies and services conform to prescribed requirements.
4.2.1 Inspection terms and definitions. Reference shall be made to ASQCA8402 to define the
inspection terms used.
7
